product description
DESCRIPTION:

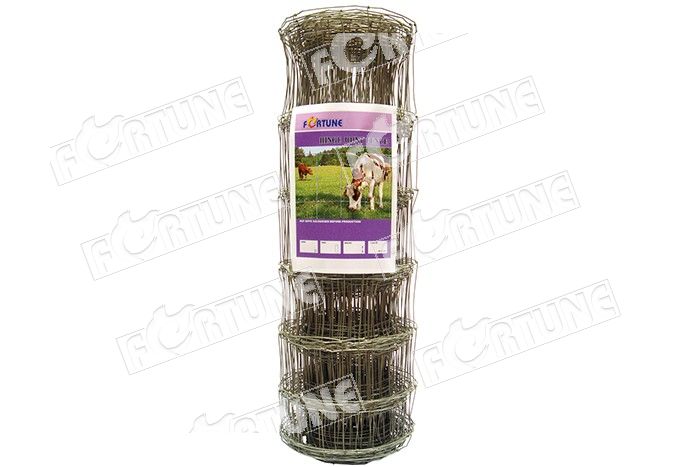

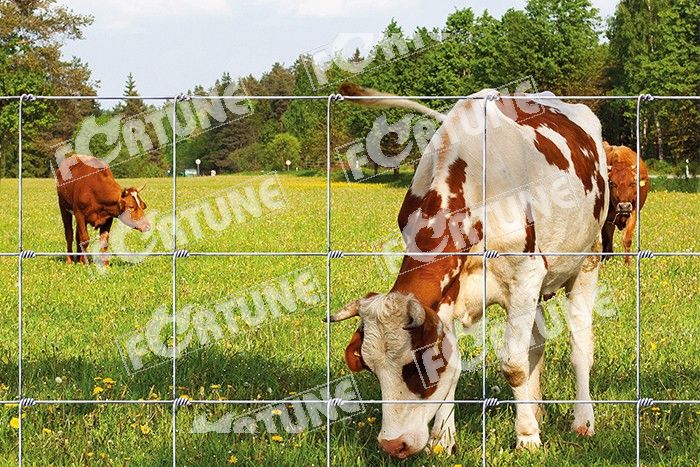

HINGE JOINT FENCE has four wrap hinge joint. This joint features a vertical wire that wraps around the horizonal wires at each intersection. It may give a little under pressure, but it always snaps back into place. This gives the fence exceptional flexibility, ideal for field and farm fencing.
FINISH:
| COMMERCIAL GALV | HEAVY GALV | ZINC ALUMINUM |
 |  |
|

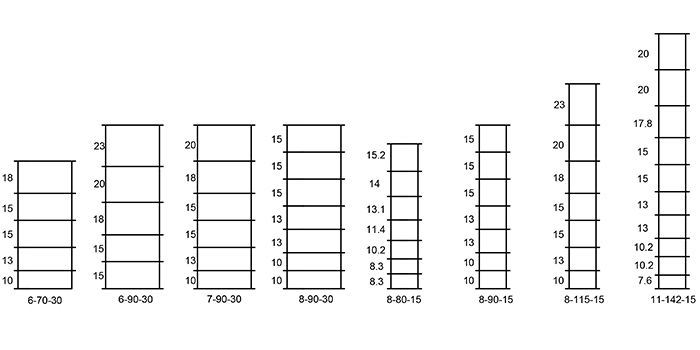

| Specification | Vertical Wire Distance (inch/cm) | No. Line Wires | Wire Gauge/mm | Height (inch/cm) | Length (feet/m) |
| 6-70-30 | 12"/30cm | 6 | 14Ga/2.0mm | 28"/71cm | 100'/30.5m |
| 6-90-30 | 12"/30cm | 6 | 14Ga/2.0mm | 36"/91cm | 100'/30.5m |
| 7-90-30 | 12"/30cm | 7 | 14Ga/2.0mm | 36"/91cm | 100'/30.5m |
| 8-90-30 | 12"/30cm | 8 | 14Ga/2.0mm | 36"/91cm | 100'/30.5m |
| 8-80-15 | 6"/15cm | 8 | 14Ga/2.0mm | 32"/81cm | 100'/30.5m |
| 8-90-15 | 6"/15cm | 8 | 14Ga/2.0mm | 36"/91cm | 100'/30.5m |
| 8-115-15 | 6"/15cm | 8 | 14Ga/2.0mm | 45"/113cm | 100'/30.5m |
| 11-142-15 | 6"/15cm | 8 | 14Ga/2.0mm | 56"/142cm | 100'/30.5m |
Line Wire： ø 1.85mm - 700/900N/mm²
Stay Wire： ø 1.85mm - 400/550N/mm²
Selvedge Wire： ø 2.45mm - 650/520N/mm²
